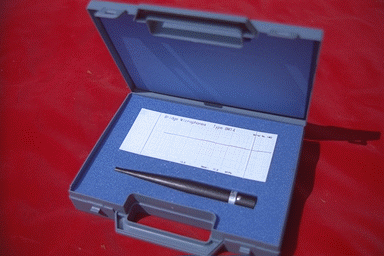

BMR14 Free Field Reference Microphone Specification

BMR14

Powering: 9-48v phantom power
Output: Low impedance active electronically balanced
Connection: Standard 3 pin XLR
Sensitivity: Nominal 11.0mV/Pa (response chart has actual value)
Response: +/- 1dB 50Hz to 5kHz, +/- 1.5dB 5kHz to 20kHz re. 1kHz
Dimension: Length 162mm, connector end 19mm dia, capsule end 7.00mm dia (suitable for standard ¼" acoustic calibrators)
Noise: -86dBv (A weighted) (~32dBA)
-66dBv (20Hz to 20kHz) (~52dB)

Price £320 + VAT + carriage

Available from

BRIDGE MICROPHONES
172 Wadsley Lane
Sheffield
England
S6 4EE
Tel +44 114 285 6540
FAX  +44 87 00 94 00 57
Mobile +44 7774 782 503

email sales@bridgemics.co.uk
Internet http://www.bridgemics.co.uk

November 2001


[
